Type RWG ... V4A 14571, PPH, PVC, PVDF
Gear blender as standard and special models
Fields of application:
Sewage technology, electroplating, water treatment, chemical industry, paint and coating industry, environmental engineering and many more.
Processes:
Circulation, admix, dispersion, suspension, homogenising, dissolving, emulsifying, heat exchange and neutralising.
Drives:
Spur gear, flat, bevel gear and worm gear. All gear types are also available with adjustment mechanisms. Gear product SEW/KEB. (Other gears and paintworks are also possible.) The motors are deliverable as standard in 220-240/380-420 V, 460 V, 500 V, 660 V, 50/60 Hz, protection class IP 55, insulation class F, explosion protection Eexell T3 to Eexell CT5 according to Atex.
Materials of the RW shaft:
V4A - 1.4571 PPH, PVC, PVDF = shaft steel C 35 K coated. Ø of the RW shaft is depending on the gear size.
Connections:
Glued and pinned, sleeve coupling, hollow shaft with feather key and disk clutch, all clutch types also available for plastic agitators.
Accessories for gear blenders on request!
![](/images/ruehrwerke/3blatt-propeller.png)
![](/images/ruehrwerke/ringpropeller.png)
Ring propeller P9 V4A
![](/images/ruehrwerke/sonderpropeller-pph.png)

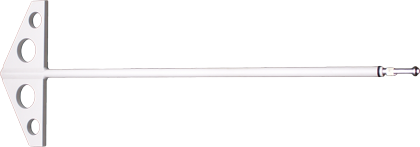

Special propeller PPH
![](/images/ruehrwerke/sonderpropeller-v4a.png)
Special propeller P 11 V4A

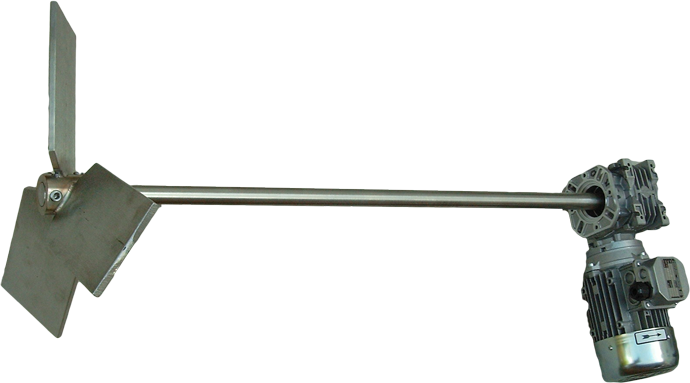

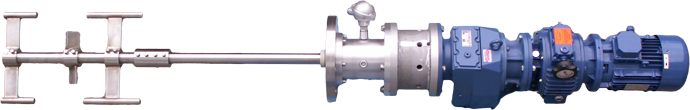

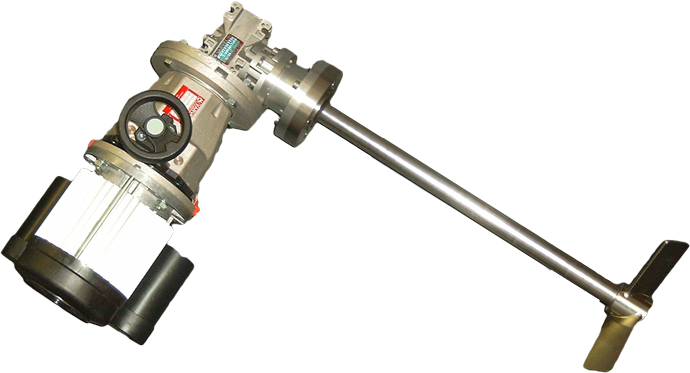

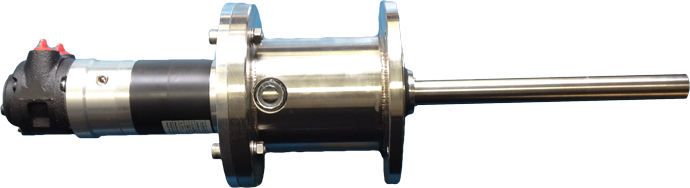

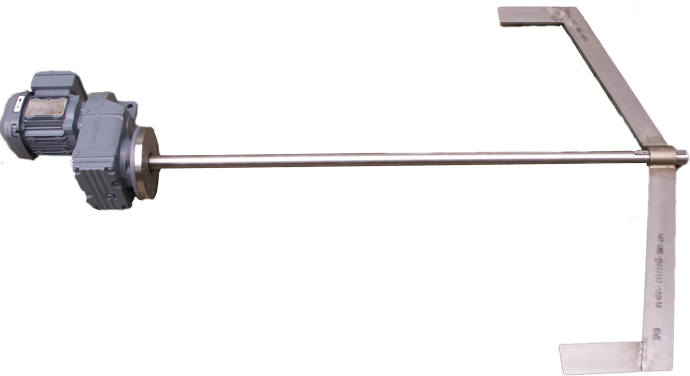

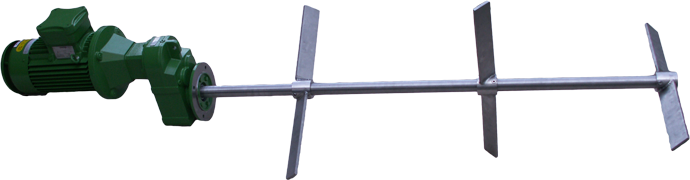

Here are some impressions:
![](/images/ruehrwerke/rwg-druck.png)

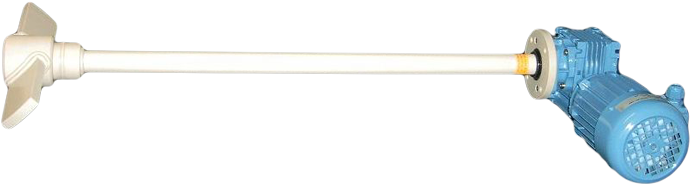

![](/images/ruehrwerke/rwg-pph.png)
![](/images/ruehrwerke/rwg-s-va-dp-3-bl.png)
![](/images/ruehrwerke/rwg-v4a-p5-2.png)
![](/images/ruehrwerke/rwg-v4a-p5.png)
![](/images/ruehrwerke/rwg-v4a.png)
![](/images/ruehrwerke/druckluftgetriebe.png)
